A Beginner's Guide to Understanding MEP Systems
Filed under: Construction
Welcome to "A Beginner's Guide to Understanding MEP" – your launchpad into mastering the complex scope of Mechanical, Electrical, Plumbing, and Fire Protection systems, collectively known as “MEP.”
These components are fundamental to making any building work effectively and comfortably. However, they often present a challenge even to seasoned professionals in construction.
Why should you learn about MEP? Because it's one of those "high-value skills." Master it, and you'll stand out in the AEC field, opening doors to exciting opportunities.
The goal here is simple - to break down these complexities and provide you with a clear understanding of MEP systems. We'll take a close look at what they are, why they're crucial, where they fit into the overall construction process, and how they work together to create a well-functioning building.
After finishing this guide, you'll have a solid understanding of the basics of MEP. With this knowledge, you'll be better equipped to influence the construction process, solve problems that arise, and deliver a project that meets the needs of its users.
MEP - What Are The Scopes?
Mechanical:
Heating, Ventilation, & Cooling (HVAC)
Building Management Systems (BMS)
Electrical:
Power & Lighting
Plumbing:
Water, Drainage, Gases
Also Includes:
Fire Protection
Low Voltage Systems
Think of a building as a human body. The MEP systems are the vital organs that keep it alive and functioning:
The Mechanical systems (HVAC) are the lungs, managing airflow.
Electrical systems act like the nerves, powering the building.
Plumbing mirrors the circulatory system, moving water around.
And Fire Protection? That's the immune system, keeping the building safe.
They all work together, making the building functional and comfortable.
Why Every Construction Manager Should Understand MEP Systems:
Up to 60% of your project's budget could be tied up in MEP. That's a huge chunk of change you need to manage wisely.
The planning and execution of civil, structural, and architectural (CSA) components on a site are directly influenced by the positioning and distribution of MEP equipment.
MEP changes are common and can throw a wrench in the works for other teams. Knowing MEP helps you stay one step ahead.
The procurement, initiation, testing, and commissioning of equipment can influence your schedule. Understanding these systems helps you plan and prevent delays.
Without a solid MEP understanding, you'll be leaning on others for decisions about scheduling, scope changes, and budgeting. And that's not where you want to be.
Ready to boost your MEP knowledge?
Let’s begin.
1. Mechanical Systems
Mechanical systems in a building encompass all systems designed to control climate and maintain air quality. They are responsible for heating, cooling, and ventilating spaces, ensuring a comfortable and healthy environment for occupants.
Heating Systems:
These systems warm up a building. There are many ways to generate heat, such as using gas, electricity, or even recovering heat from other sources. They can be local (like a radiator in a room) or central (like a big boiler in the basement).
Heating Hot Water: The process begins with the boiler, where water is heated to a high temperature. This boiler uses a fuel source, such as gas or oil, to heat the water.
Pump: A circulating pump then moves the heated water from the boiler to various parts of the building.
Heat Exchanger/Coils: These pipes run through a heat exchanger, which in many systems is a coil located inside an Air Handling Unit (AHU) or a Fan Coil Unit (FCU). The heat exchanger or coil is where the hot water's heat is transferred to the air which is then distributed throughout the duct system.
Return Path: After releasing its heat to the air, the now cooler water returns back to the boiler through a separate set of pipes. The water is reheated, and the cycle begins again.
Thermostat: Throughout this process, a thermostat measures the temperature of the room's air. If the room's temperature drops below the set point on the thermostat, it sends a signal to the boiler and the pump to start heating and circulating water again.
Cooling Systems:
These systems remove heat to cool down a building. They use different methods like chilling water or evaporating it to cool down the air. They can be small units in each room or big ones that cool the whole building.
Chilled Water: At the heart of this system is a machine called the chiller. The chiller has a refrigeration cycle that cools down water. This process involves using a refrigerant, which changes from a gas to a liquid and back again. When the refrigerant turns from a liquid into a gas in the chiller's evaporator, it absorbs heat from the water. This process cools down the water drastically, usually to around 45 degrees Fahrenheit.
Pump: Once the water is chilled, a pump pushes the chilled water out of the chiller and towards the cooling coils located in air handlers or fan coil units throughout the building.
Cooling Coils: The chilled water flows through these coils. As room air is forced over these coils by a fan, the air absorbs the coolness from the chilled water. As a result, the air cools down and is then distributed throughout the building, thereby reducing the indoor temperature.
Return Path: After the water circulates through the system and transfers its cold energy to the air, it warms up. The now warmer water returns back to the chiller to start the process again.
Ventilation Systems:
Ventilation is all about controlling air movement. It gets rid of stuffy air, controls humidity, and provides fresh air. It can be as simple as opening a window or as complex as a system with fans, ducts, and filters.
Air Handlers: These are large metal units that condition and circulate air as part of the HVAC system. It's designed to be durable and to protect these elements from the elements and various environmental conditions. These elements include:
Fan: This is the heart of the system. It pushes air around, and its speed can be adjusted to control airflow.
Filters: These clean the air by trapping particles like dust and pollen. To keep the air fresh, filters need to be cleaned or replaced regularly.
Heating and Cooling Coils: These change the air temperature. Heating coils warm the air, and cooling coils cool it down.
Humidifier: This part adds moisture to the air, usually during dry months.
Dampers: These are like valves that control how much air goes to different parts of the building. In high-tech systems, they're usually adjusted automatically.
Mixing Box: This is where the system decides how much fresh outdoor air to mix with the air already inside the building.
Controls: This is where you make adjustments, like changing the temperature or fan speed.
Motor: This powers the fan that moves the air around.
Belt and Sheave (pulley): The belt connects the motor to the fan, and the sheave controls the fan speed.
Fan Coil Units (FCU) & Variable Air Volume (VAV) Boxes: These units heat or cool the air moving through a duct system.
Exhaust Systems: These systems remove air from inside the building.
Building Management System (BMS):
The Building Management System (BMS) is the brain that controls these systems. It can adjust temperature, turn systems on or off, and even talk to other building systems.
Automated Control: The BMS uses Direct Digital Control (DDC) and Programmable Logic Controllers (PLC) to automate and manage the building's functions. This means it can turn systems on or off, adjust temperatures, or control lighting based on pre-set criteria or schedules.
Communication: The BMS is not an isolated system. It communicates with other systems in the building. For example, it might adjust the HVAC system based on information from a security system that tells it how many people are in the building.
Remote Management: One major advantage of a BMS is its ability to be controlled remotely. This means a facilities manager can adjust building systems from a computer, without having to manually adjust each system.
2. Electrical Systems
Electrical systems in a building include power distribution, lighting, fire alarm systems, and security systems. They power our lights, appliances, and technology, making our buildings functional, safe, and comfortable. Here are the main components:
Supply: Buildings receive electricity from a utility company through primary service lines.
Distribution: Once inside, electrical panels distribute this power throughout the building via circuits.
Regulation: Devices like circuit breakers and fuses protect the system from overloads or short circuits.

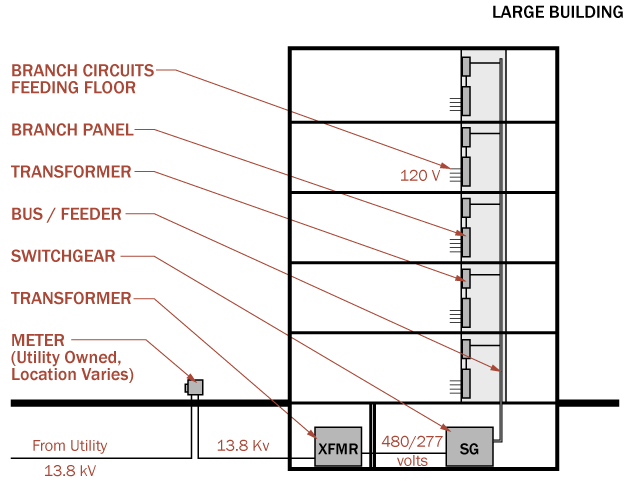

How does a building get its power?
Imagine power going on a journey from its source to the light switch in a room. Here's how that journey looks:
Step 1: Power Generation & Transmission
First, electricity is created at a power station. There are many ways to do this - using coal, natural gas, water, wind, or even the sun.
Once the electricity is created, it's sent far and wide through a network of high-voltage lines called the electrical grid.
Step 2: Power Distribution
Before the electricity can be used in a building, it needs to be at a safe voltage level. This is done at a substation, where devices called transformers reduce the voltage. The levels depend on the type of building - for houses, it's typically 120/240 volts, and for larger commercial buildings, it's usually 277/480 volts.
Step 3: Power Enters the Building
From here, the electricity goes to the building through service lines. There's an electrical meter that measures how much electricity is used for billing purposes. The service line then connects to the main electrical panel in the building.
Step 4: Power Distribution Within the Building
Inside the main electrical panel, the power is divided into smaller parts called circuits. Each circuit is protected by a circuit breaker, which can switch off the circuit if too much electricity flows at once.
Sub-panels are smaller service panels that distribute electricity to a specific area of a building, such as a garage, home addition, or a specific floor in a large building. They are connected to the main breaker panel and are often used when the main panel doesn't have enough space for additional circuits.
Step 5: Power Reaches Its End Use
The circuits run all around the building to reach the places where electricity is needed, like outlets, lights, and appliances. When you flip a switch or plug something in, electricity flows to it, and it turns on or starts working.
3. Plumbing Systems
Plumbing systems are all about water. They make sure clean water comes into a building and waste water goes out.
Plumbing follows the basic laws of nature — gravity, pressure and water seeking its own level.
Water Supply: This is the system that brings in fresh water. It's used for drinking, cooking, washing - all the things we need clean water for.
Drain-Waste-Vent (DWV) System: This system takes care of the dirty work. It removes wastewater and waste from the building. It also ensures unpleasant sewer gases are sent outside, not inside.
Fixture Traps: These are shaped like a "U" and have a critical job. They hold a little water which forms a barrier that stops sewer gases from coming back into the building.

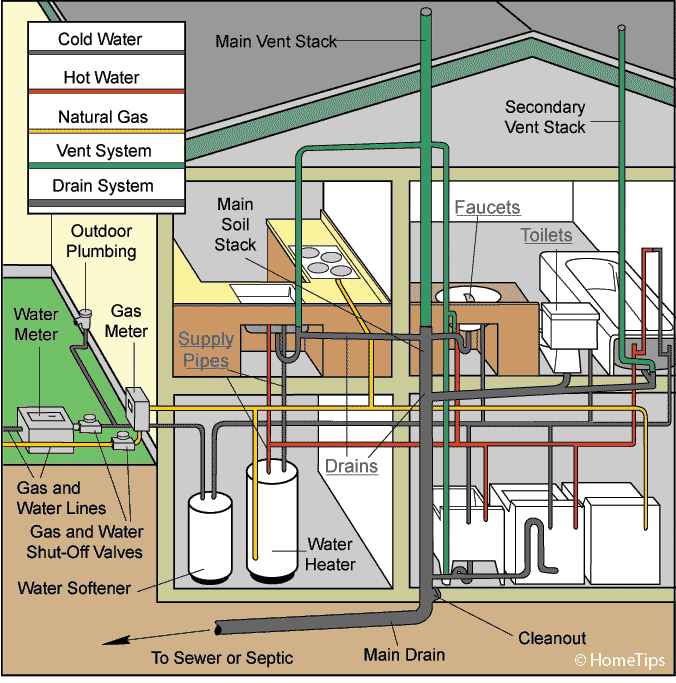

How does hot and cold water move throughout a building?
Step 1: Water Supply
Buildings receive their water supply from a municipal water line or a well. This water is generally cold. When it enters the building, it's directed to two different systems - one for cold water, and one for hot. The cold water is ready to be distributed immediately to sinks, toilets, and outdoor faucets.
Step 2: Heating the Water
For the hot water supply, the cold water first needs to be heated. It's directed to a water heater or boiler that can be powered by electricity, gas, or even solar power. The heater warms up the water to a set temperature and then sends it to the hot water lines.
Step 3: Distribution
Both hot and cold water lines run throughout the building, typically within the walls, floors, or ceilings. They branch off to provide water to individual fixtures like sinks, showers, and washing machines.
When a hot or cold water tap is turned on, water pressure pushes the water out of the faucet, ready for use. The temperature can be adjusted at the tap by mixing hot and cold water as required.
It's important to note that the hot water lines are insulated to keep the water hot and to save energy. Also, to ensure a continuous supply of hot water, the water heater maintains the water temperature even when no hot water is being used.
The entire process is a simple but clever use of pressure and gravity to move water around the building.
4. Fire Protection Systems
Fire protection systems are crucial in every building. They serve to detect fires early, control their spread, and ultimately extinguish them, safeguarding both lives and property. Here are the key components:
Fire Detection:
The first line of defense is early detection. This system includes smoke detectors, heat detectors, and fire alarm control panels.
Fire alarms work by constantly monitoring the environment for signs of fire, such as smoke or excessive heat. When these signals are detected, the system triggers an alarm to warn occupants.
The alarm system is also typically connected to a central monitoring station or directly to local fire departments, alerting them to the situation.
Fire Suppression:
Once a fire is detected, we need to stop it from spreading. This is where fire extinguishers and automatic sprinkler systems come into play.
Fire sprinklers are typically ceiling-mounted and connected to a network of pipes that are filled with water. Each sprinkler head contains a heat-sensitive element, such as a glass bulb filled with a glycerin-based liquid.
When the temperature around the sprinkler head reaches a certain threshold (typically 135-165 degrees Fahrenheit), the heat-sensitive element bursts, activating the sprinkler. Water is then discharged onto the fire below, suppressing or extinguishing the fire and preventing it from spreading.
Evacuation:
These systems support safe evacuation from the building in case of a fire. They include emergency lighting to illuminate exit paths, and clearly marked exit signs.
How do these systems relate to each other?
Understanding how MEP systems work together is essential for smooth construction management. Here's a quick breakdown:
Mechanical and Electrical: All our heating, ventilation, and cooling equipment need electricity to run. So, we need to plan our electrical system to power our mechanical systems correctly.
Mechanical and Plumbing: Our ductwork (for heating and cooling) and pipework (for water) often occupy the same spaces in a building. This means we need to carefully plan their routes to avoid them clashing, and make sure we can still access everything for future repairs.
Electrical and Plumbing: Electricity and water don't mix well! We must keep electrical and plumbing systems safely apart to avoid risks if any leaks happen.
Fire Protection: When planning our MEP systems, we always have to think about fire safety. This can affect the materials we use, where we put things, and how our systems work during emergencies.
Understanding these relationships allows construction managers to foresee potential conflicts and streamline the installation process. The goal is to have these systems operate cohesively for the life span of the building, providing comfort and safety to its occupants.
MEP Documentation
MEP documentation is a vital part of construction, detailing all the essential system designs and guidelines. It includes various reports, drawings, and specifications that cover everything from design to installation and maintenance.
Together, these documents ensure that everyone involved in the design, construction, and maintenance of the building understands the MEP systems, how to install them, and how to keep them working efficiently for years to come.
Reports:
Basis of Design (BOD): This document outlines the design principles, requirements, and applicable codes or standards that the design needs to meet.
Short Circuit Analysis / Arc Flash: This is a study conducted to determine the magnitude of current flowing throughout an electrical system during a short circuit or an electrical fault.
Test and Balance (TAB): This is a report showing that HVAC systems have been tested and adjusted to deliver optimal performance and comfort.
Commissioning (Cx): This is a quality assurance process to verify that building systems are designed, installed, tested, and capable of being operated and maintained as per the owner's project requirements.
Day-lighting Analysis: This is an evaluation of the amount of natural light in a building to enhance energy efficiency and occupant comfort.
Energy Efficiency Reports: These reports assess the energy performance of the building's systems, outlining measures to improve efficiency.
Load Calculations Report: This report contains the calculation of heating and cooling loads for each space in a building, critical for sizing HVAC systems.
Drawings:
Floor Plans: These are scale diagrams of the arrangement of rooms in the building from above, showing how spaces are connected.
Enlarged Plans: These are detailed, zoomed-in versions of certain sections of floor plans, highlighting specific areas or elements.
Diagrams (single line, riser, flow, controls): These are simplified drawings that illustrate the components and functionality of electrical and mechanical systems.
Details: These drawings provide extra information, in-depth specifics or close-ups about a particular part of the building or system.
Schedules: These are detailed charts that list various elements and their details for reference and coordination.
Layouts for Equipment Rooms: These drawings show the physical arrangement and location of equipment in specific rooms.
Sections and Elevations of Critical Areas: These drawings show a vertical 'cut-through' view of the building, showing structure and component heights.
MEP Coordination Drawings: These show all building services (mechanical, electrical, and plumbing) in one drawing to coordinate their location and avoid clashes.
Shop Drawings: These are detailed, 'pre-manufacture' drawings typically produced by the contractor, manufacturer, or fabricator.
Specifications:
Quality Assurance and Quality Control (QA/QC) Requirements: These are guidelines and procedures to ensure the project will meet the required standards of quality.
Maintenance Requirements: These are the necessary tasks, frequencies, and standards to maintain the building systems over time.
Warranty Information: These are the terms and conditions that outline what is covered by the manufacturer if a system or component fails.
Material and Equipment Standards: These are specifications that describe the quality and performance characteristics of materials and equipment used.
Installation Standards and Requirements: These are guidelines and procedures for how systems and components should be installed.
Start-Up, Testing, and Cx Requirements and Documentation: These outline the processes for initializing systems, testing their operation, and documenting their compliance with design intentions.
As-Built Documentation: This includes any modifications or field changes to the original design that occur during the construction process.
Operation and Maintenance Manuals: These are detailed guides that outline how to operate and maintain the systems installed.
Final Takeaways:
In conclusion, understanding MEP systems is key for influential construction project management.
When you understand how these systems function, interact, and require maintenance, you'll be better equipped to manage the construction process, solve problems that arise, and deliver a project that meets the needs of its users.
While these systems may seem complex, breaking them down into their essential components and functions can make them much more approachable and manageable.
It's all about taking one step at a time and building on your knowledge as you grow in your role.
Until next week,
Kyle Nitchen
