In 2023, I published A Beginnerâs Guide to Understanding MEP Systems. It was read over 60,000 times and shared more than 120 times, making it the most-read piece Iâve ever written. Today, we go deeper.
MEP systems (Mechanical, Electrical, Plumbing, and Fire Protection) represent up to 60% of your total construction budget. If you donât understand these scopes, you donât understand your project.
This guide is not just about what MEP systems are. It is about how to think about them, plan them, and manage them as a project manager or project leader. Whether youâre a PM stepping into your first MEP-heavy project or a seasoned leader who wants a tighter command of these systems, this is your playbook.
⥠Part 2: How to Think, Plan, and Manage MEP Like a Pro
Filed under: Construction
Three years ago, I sat down and wrote A Beginnerâs Guide to Understanding MEP Systems.
I wanted to take something that scares most project managers, the complex, interconnected world of Mechanical, Electrical, and Plumbing, and break it down into plain language. I wanted to make it approachable.
That piece went on to be read over 60,000 times. It was shared more than 120 times! The DMs, emails, and comments poured in. The message was clear.
The industry is hungry for this knowledge.
And honestly, that original guide only scratched the surface. It covered what MEP systems are. It explained the components, the terminology, and how things fit together.
But hereâs the truth. Knowing what MEP is and knowing how to manage it are two very different things.

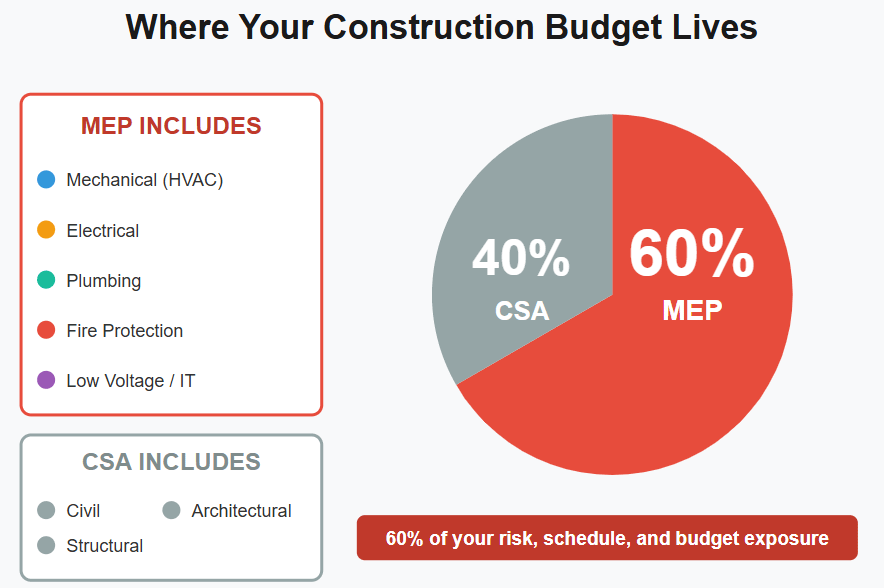

60% of your construction budget lives inside MEP scopes. Your ability to lead a project depends on your ability to lead these systems.
So today, we're going deeper and wider, to a level the first guide never touched.
This is Part 2.
Letâs get after it.
If youâre a project manager or project leader in construction and you donât have a working command of MEP systems, you are carrying risk you do not need to carry.
MEP accounts for up to 60% of total construction cost. That means the majority of your dollars, your risk, and your schedule exposure live in mechanical, electrical, plumbing, and fire protection.
CSA (civil, structural, architectural) positioning is directly influenced by MEP. Where you place equipment rooms, vertical risers, and horizontal distribution paths dictates the entire building layout.
MEP changes cascade. A single mechanical revision can impact structural openings, electrical loads, plumbing routing, ceiling heights, and the fire protection layout. One change. Five impacts.
Procurement and commissioning drive your schedule. Long-lead equipment, deferred submittals, startup sequences, and testing timelines are almost always on your critical path.
If you canât speak the language, you canât make decisions. Youâll be leaning on others for scheduling calls, budget decisions, and scope interpretations.
The projects driving demand right now are not simple.
Data centers.
Semiconductor plants.
Big infrastructure.
Or in my case, high-stakes healthcare projects.
Those jobs are MEP-heavy by definition. The coordination is dense. The tolerances are tight. The commissioning expectations are unforgiving.
If youâve worked one, you already know the pattern. Small misses stack up fast. You feel it in labor hours, schedule, rework, and turnover punch.
And the workforce that used to absorb those misses is thinning out.
The people who knew how to run these jobs are leaving.
The labor shortage is the headline. The management shortage is the part nobody wants to talk about.
The industry needs 499,000 net new workers in 2026 to meet anticipated demand. Wages are up 4.4% year over year. A meaningful portion of the management workforce is at or near retirement age.
That matters because MEP coordination has always leaned on experience. A few senior people who have âseen the movieâ carry the team through the hard spots.
When those people retire, the tribal knowledge leaves with them.
So the goal of this guide is to change that. By the time you finish reading, youâll have a framework for how to think about MEP, a system for how to manage it, and the confidence to lead these scopes.
Weâll start with a quick foundation, the systems themselves, then move into how to think about them, plan them, and lead them.
Part 1: Understanding MEP, the foundation (refreshed)
If you read the original guide, consider this a sharper, more PM-oriented refresh. If this is your first time, welcome aboard.
What is MEP?
MEP stands for Mechanical, Electrical, and Plumbing. In practice, it also includes Fire Protection and Low Voltage / Technology systems. Together, these are the systems that make a building function.
I like to think of MEP systems the same way I think about the human body. Every system serves a function. Every function keeps the building alive.
đŤ Mechanical (HVAC) = the lungs, managing airflow, heating, and cooling
⥠Electrical = the nervous system, powering everything and carrying signals
đż Plumbing = the circulatory system, moving water in and waste out
đĽ Fire Protection = the immune system, defending the building from threat
đĄ Low Voltage / IT = the brain, data, controls, communication, and intelligence
They donât work in isolation. They work as an interconnected network. And thatâs both the beauty and the complexity.
If you haven't read the original guide, or if you want the full component-level breakdown, start there: A Beginner's Guide to Understanding MEP Systems. What follows here is the PM version â how these systems show up in your job, not how they get engineered.
1. Mechanical Systems
Mechanical systems control the climate inside the building.

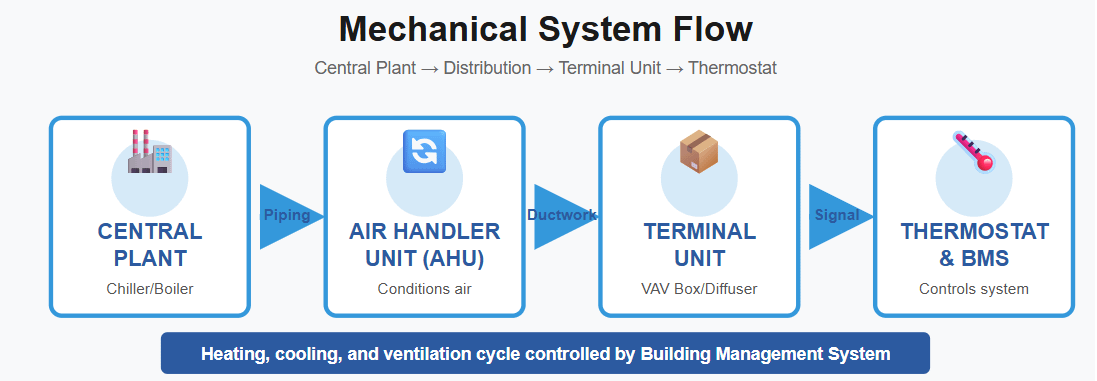

Heating runs hot water through coils to warm the air. Cooling runs chilled water through coils to cool it down. Ventilation moves that conditioned air through ductwork to every space in the building, controlled by a Building Management System (BMS) that automates the whole cycle.
The flow is always the same: central plant â distribution â terminal unit â thermostat.
PM Insight: You donât need to design the mechanical system. But you need to understand the flow. From central plant to air handler to terminal unit to thermostat. If you understand the flow, you can plan the installation, anticipate coordination conflicts, and ask the right questions when things go sideways.
2. Electrical Systems

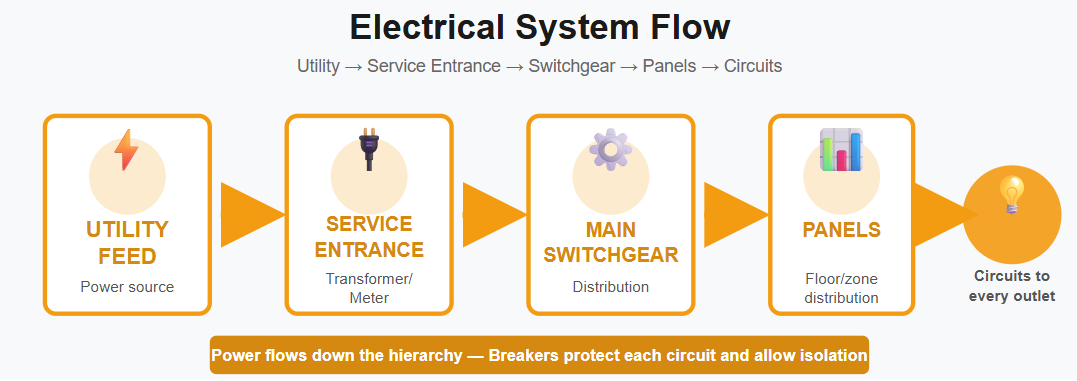

Electrical systems deliver power from the utility to every outlet, light, and piece of equipment in the building.
Power enters through the service entrance, steps down through transformers, and flows into the main switchgear. From there it divides into panels and sub-panels that feed circuits to every floor and zone. Each circuit is protected by breakers that control and isolate the load.
Your electrical one-line diagram tells the whole story in a single sheet.
PM Insight: The one-line diagram is one of the most important drawings on the project. It shows the entire hierarchy â from utility feed to switchgear to panels to branch circuits. Learn to read it. It will tell you the story of every watt of power in the building.
3. Plumbing Systems

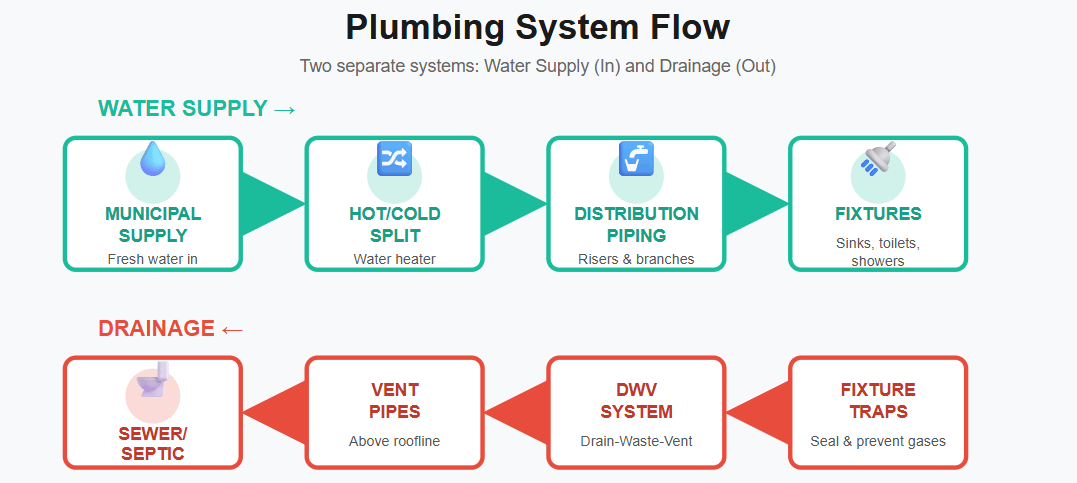

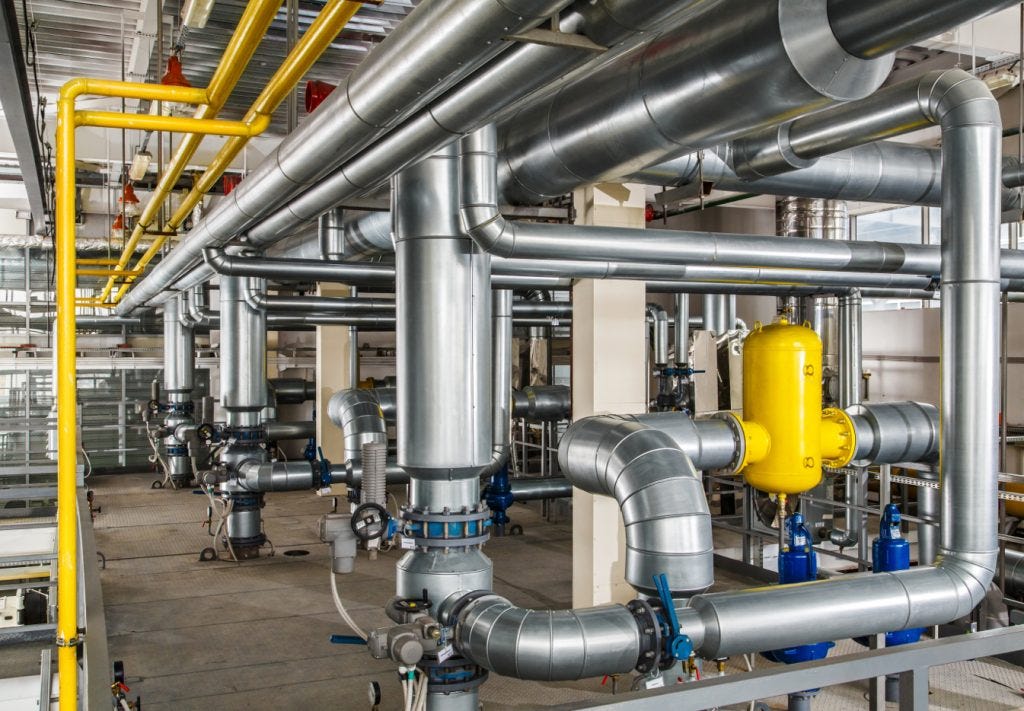

Plumbing moves water in and waste out.
Fresh water enters from the municipal supply, splits into hot and cold lines, and distributes to every fixture in the building. Wastewater drains by gravity through the drain-waste-vent (DWV) system, with vent pipes equalizing pressure and releasing sewer gases above the roofline. Fixture traps, those U-shaped pipes under every sink, hold water to seal the system and keep gases out of occupied spaces.
Plumbing is the first MEP trade underground and the last one you think about, until something leaks.
PM Insight: Pay close attention to underground rough-in coordination, riser locations, and fixture counts. Changes to plumbing are expensive because they often involve concrete, structure, and gravity â which doesnât negotiate.
4. Fire Protection Systems
Fire protection detects, suppresses, and helps people escape.
Smoke detectors and heat detectors monitor every zone and report to the fire alarm control panel. Automatic sprinkler systems connect to a pressurized pipe network â each head contains a heat-sensitive glass bulb that bursts at threshold temperature and discharges water onto the fire below. Emergency lighting and exit signs guide occupants out when everything else fails.
Fire protection touches every system in the building and every inch of your ceiling space.
PM Insight: It affects ceiling heights, structural penetrations, wall ratings, and your certificate of occupancy. Fire life safety walks are often a final gateway before turnover. Plan early, coordinate often, and never treat fire protection as an afterthought.
5. How these systems relate to each other
This is where most PMs get lost, and where the best PMs separate themselves.
Mechanical â Electrical: Every piece of HVAC equipment needs power. Electrical capacity planning must account for mechanical loads.
Mechanical â Plumbing: Ductwork and piping compete for the same ceiling space. Coordination drawings are critical to avoid clashes and ensure maintenance access.
Electrical â Plumbing: Electricity and water donât mix. Routing must maintain safe separation distances, especially near panels, junction boxes, and wet areas.
Fire Protection â Everything: Fire ratings influence equipment placement and system operation during emergencies. Sprinkler heads, duct smoke detectors, and fire dampers all must be coordinated with mechanical, electrical, and architectural layouts.
MEP is one integrated network, and your job as PM is to orchestrate it.
Part 2: The mindset shift, think in systems, not locations

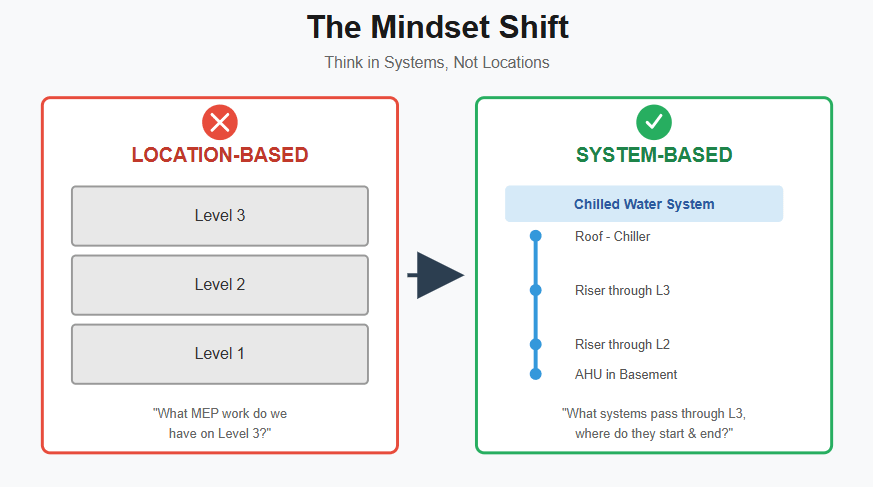

Most PMs think about construction geographically. âWeâre building Level 1. Then Level 2. Then Level 3.â
That works fine for concrete and steel. It does not work for MEP.
MEP systems donât care about your floor boundaries. A chilled water pipe starts at a chiller on the roof, drops down a riser through every floor, and terminates at an AHU in the basement. An electrical feeder runs from the main switchgear through vertical conduit to sub-panels on every level. A fire sprinkler main enters at the ground floor and feeds branch lines across the entire building.
Systems are vertical, interconnected, and they cross every boundary you draw on a plan.
This one shift changes everything. It forces you to understand:
Where the system starts (utility entry, central plant, electrical room)
How it travels (risers, chases, horizontal distribution)
Where it serves (terminal units, fixtures, equipment)
How it connects to other systems (intersections, interfaces, handoffs)
From components to connections
Your domestic water enters the building and branches into three paths: domestic water distribution, fire water, and irrigation. Thatâs an intersection.
Domestic water then feeds into your heating hot water system and chilled water system, which feed into AHUs, which condition and distribute air. Thatâs another intersection.
The AHUs talk to the BMS, which talks to thermostats, which communicate occupancy back to the system. Thatâs yet another intersection.
Every intersection is a coordination point. Every coordination point is a potential conflict. Every conflict you see coming is a conflict you can prevent.
Train yourself to trace systems, not count floors. When you can follow a system from source to end-use and identify every intersection along the way, you can plan it, schedule it, and manage it.
Part 3: The PMâs playbook, 5 strategies to manage MEP like a leader
Everything from Part 1 and Part 2 comes together here. These are the strategies that separate PMs who understand MEP from PMs who manage it.
Strategy #1: Learn the drawings, starting with single lines and flow diagrams
This is your starting point. Period.
If you want to know what your MEP systems are, what they do, and how they fit together, get into the drawings. Not the architectural drawings. Not the structural drawings. The mechanical, electrical, plumbing, and fire protection sheets.
The most important drawings youâll find are the single line diagrams (electrical) and flow diagrams (mechanical/plumbing). They show the system architecture. How power flows from the utility to the last outlet. How water flows from the chiller to the last VAV box. The hierarchy, the branches, the intersections, and the control points.
What to do with them:
Print them out. Yes, physically print them.
Highlight the major equipment and connections.
Trace the flow from source to end-use.
Mark the intersections where systems meet.
Use them for planning and scheduling conversations with your trade partners.
These diagrams become your management tool. When youâre tracking progress, you wonât be guessing. Youâll be following the system.
Strategy #2: Ask relentless questions
Youâre surrounded by experts.
Your mechanical foreman has been installing ductwork for years. Your electrical foreman can read a panel schedule in their sleep. Your plumbing foreman knows pipe sizing by feel.
Use them.
Ask questions like:
âWalk me through how this system gets installed. What comes first, second, third?â
âWhere are the tough coordination spots on this floor?â
âWhatâs the longest lead item in your scope?â
âWhat do you need from the other trades before you can start?â
âWhatâs going to slow you down that I can help remove?â
Asking questions is how leaders learn. The trades will respect you for it.
Strategy #3: Learn the installation pattern
Once youâve asked enough questions and studied enough drawings, patterns will emerge. MEP installation follows a rhythm on every floor. Learn the rhythm and you can plan the work.

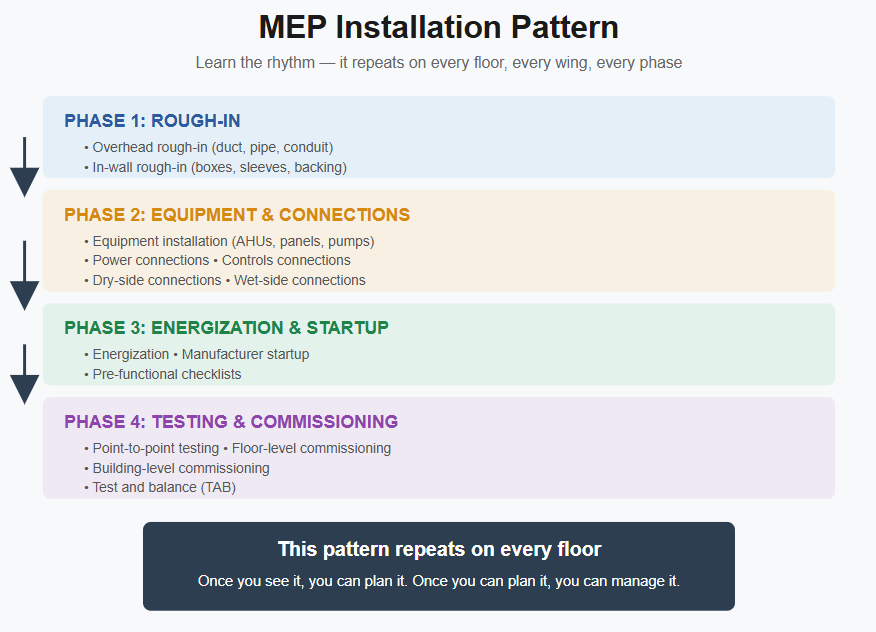

The general pattern Iâve seen on virtually every project:
Thatâs your pattern. It repeats on every floor, every wing, every phase. Once you see it, you can plan it.
Strategy #4: Plan, track, and pull by system
This is where systems-thinking becomes action.
Start with the milestone pull plan. Get your mechanical, electrical, plumbing, fire protection, and controls foreman in a room. Put the end milestone on the wall: âBuilding commissioning complete.â Ask: âWhat has to happen right before that?â Pull backwards until you reach todayâs date. Identify every intersection, handoff, and constraint. Assign durations and owners.
Youâll walk out of that room with a high-level roadmap for building the MEP backbone of your project.
Then track by system, not by location. Most PMs track MEP progress by floor. âLevel 2 overhead is 60% complete.â That tells you nothing about whether the system is ready to function. Instead, pull out the flow diagrams and single line diagrams. Schedule dates for each segment, each piece of equipment, and each connection. Highlight them as theyâre installed. This shows you how close a system is to being operational. Counting pipe in the ceiling never told you that.
Then zoom in with detailed pull plans. For each phase or zone of work, run a detailed pull plan with your trade partners. This is the Last Planner System in action. Identify the work in the coming 4 to 6 weeks. Break it into tasks that can be completed in a week or less. Make reliable promises. Remove constraints before the work hits the floor. Track Percent Plan Complete (PPC) weekly to measure reliability.
Three tiers. One discipline. Milestone plan for the macro view, system tracking for progress, detailed pull plans for execution.
Strategy #5: Start commissioning before you think you need to
Start planning commissioning at least 6-8 weeks earlier than you think you need to.
Most projects treat commissioning as something that happens at the end. Thatâs a mistake. Commissioning begins the moment the first piece of equipment gets energized. Pre-functional checklists, equipment startups, point-to-point testing, functional performance testing, TAB, fire life safety walks â all of it needs a sequence and a timeline.
Run a dedicated commissioning pull plan:
Identify every system that needs to be commissioned.
Map the sequence.
Work backwards from your certificate of occupancy date.
Build buffer.
Your reference sheet
You donât need to memorize every document on the project. You need to know where to find the answers when questions hit.
Reports:
Basis of Design (BOD) = Design intent, codes, and standards
Load Calculations = HVAC sizing basis for every space
Short Circuit / Arc Flash = Electrical fault current and safety
Test & Balance (TAB) = HVAC system performance verification
Commissioning (Cx) = Quality assurance for all building systems
Energy Efficiency = Building performance against energy targets
Daylighting Analysis = Natural light evaluation for efficiency
Drawings:
Floor Plans & Enlarged Plans = Spatial layout and equipment placement
Single Line / Riser / Flow Diagrams = System-level architecture and connections
Details & Schedules = Equipment specs and installation specifics
Equipment Room Layouts = Physical arrangement of major equipment
MEP Coordination Drawings = Clash detection and system integration
Shop Drawings = Fabrication and manufacturer details
Sections & Elevations = Vertical relationships and clearances
Specifications:
QA/QC Requirements = Standards for quality and inspection
Installation Standards = How systems should be installed
Startup, Testing & Cx = Procedures for commissioning
Material & Equipment Standards = Performance and quality specs
Warranty Information = Coverage terms for systems and equipment
O&M Manuals = How to operate and maintain the building
As-Built Documentation = Field changes from original design
PM Insight: Build a reference sheet that maps each MEP trade to their key spec sections, submittals, and testing requirements. Itâll save you hours.
Your action plan
Donât try to do everything at once. Start here:
This week: Pull the single line diagram and one mechanical flow diagram for your project. Print them. Trace the system from source to end-use.
Next week: Sit down with one MEP foreman and ask them to walk you through their installation sequence. Take notes.
Within 30 days: Run a milestone pull plan with your MEP trade partners for the next major phase of work.
Within 60 days: Start a system-based tracking method. Highlight progress on your flow diagrams instead of (or in addition to) your floor plans.
Within 90 days: Initiate your commissioning pull plan. Even if turnover is 12 months away. Especially if turnover is 12 months away.
Every step builds on the last.
Final takeaways
Thereâs no reason that you canât be highly successful with MEP and construction.
You wonât size ductwork or calculate voltage drop. You wonât memorize every valve type or wire gauge.
What you need is a working command of how the systems work together, how they get installed in sequence, where the critical intersections are, what drives your long-lead procurement, how commissioning connects back to your schedule, and how to read the drawings that tell the systemâs story.
If 60% of your project budget is MEP, and you canât speak intelligently about those systems, you are managing 40% of your project. Thatâs survival mode.
The original Beginnerâs Guide to Understanding MEP Systems gave you the vocabulary. This guide gives you the operating system.
Understanding MEP is table stakes. Managing MEP is what makes you indispensable.
Think in systems. Ask relentless questions. Study the drawings that tell the story of how the building breathes, powers up, and protects itself.
The PMs who lean in and learn the patterns earn the trust of their trades, the confidence of their owners, and the loyalty of their teams.
Lean into what you donât know. Staying comfortable with the gaps is the only real danger.
Dig in. Youâve got this.
